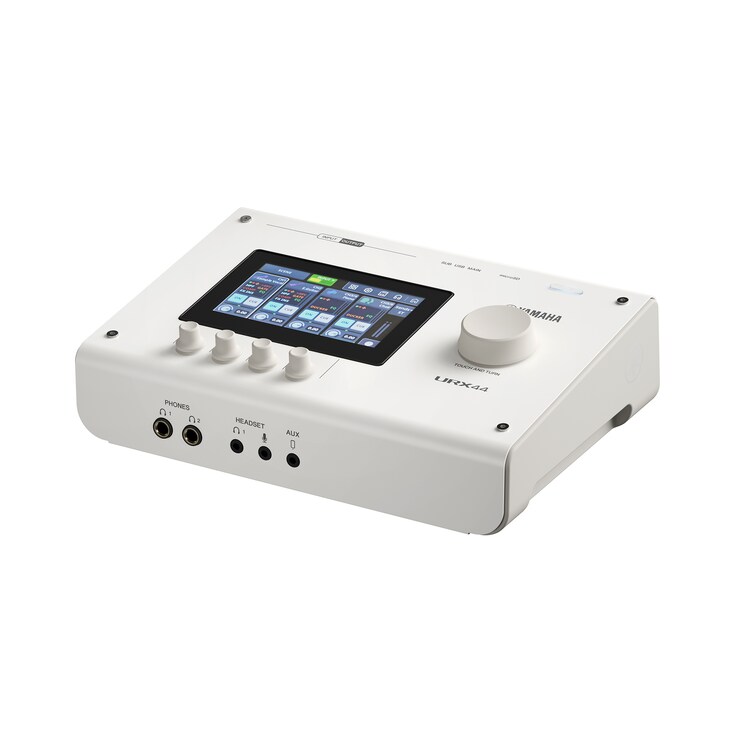

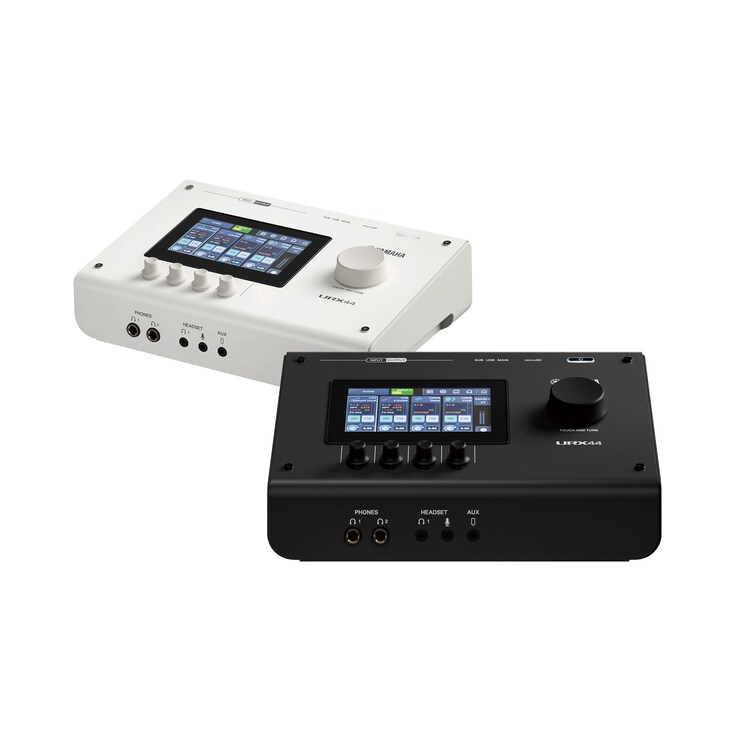

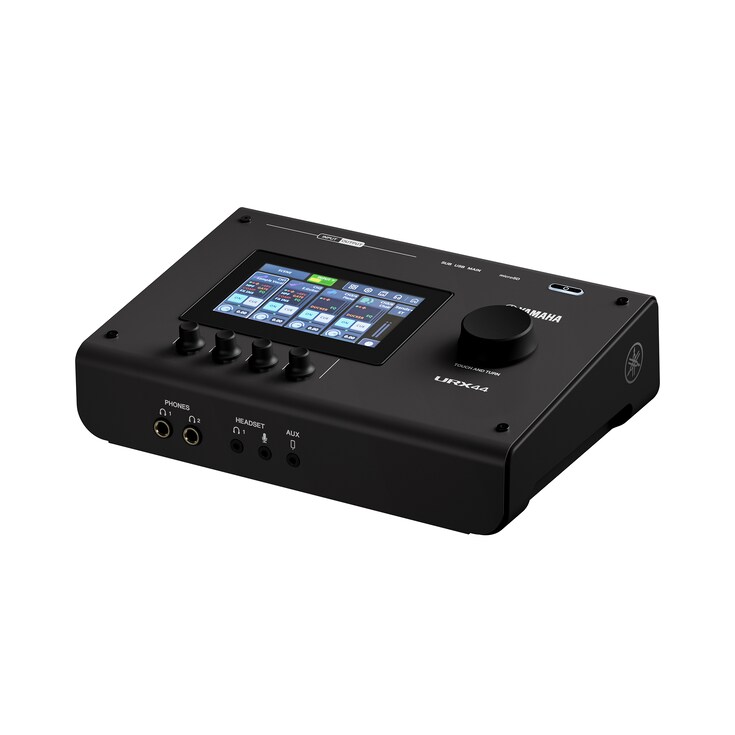

URX44Audio Interface

Colors / Finishes

6-in/4-out USB-C Audio Interface with 32-bit/192kHz support, Touch LCD panel GUI with physical controller, DSP-powered mixing/effects for a seamless workflow.

  • USB Type-C audio interface with 32-bit / 192 kHz support, Multi-Stream Audio Driver, dual USB (MAIN/SUB)
  • 125 dB dynamic range (MAIN output - Balanced)
  • 4 URX mic preamps with 78 dB gain range and +48 V phantom power
  • 4 Mic/Line (2 Combo/3.5 mm headset mic, 2 Combo with Hi-Z), 1 AUX input (3.5 mm Phone)
  • 4 TRS line outputs, 2 headphones (1 stereo phone/3.5 mm headset, 1 stereo phone)
  • Input mixing channels: 4 mono + 4 stereo + 2 FX
  • Busses: 2 MIX (stereo) + 1 STEREO
  • A 4.3-inch touchscreen with five control knobs
  • Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
  • Built-in DSP processor for professional sound and latency-free monitoring
  • microSD card recording up to 16 tracks / playback 2 tracks
  • Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, USB-C to USB-C Cable (USB 2.0, 1.5m)

Features

More Connections for Unlimited Creativity

If you're a multi-instrumental musician, podcaster, or producer looking for a compact system with impressive functionality that can handle recording, production, and streaming performance for professional use, the URX44 is the ideal all-in-one system to capture and broadcast your boundless creativity.

The diverse number of audio sources enabled by its extensive I/O and routing, along with professional-quality effects and assistive features such as auto gain, are all integrated into the unit’s touch-panel GUI and controllers, providing intuitive, fast operation that unleashes your full creative freedom.

Capture the Moment

Every note, every breath, every beat — captured with stunning precision and faithful clarity.

Born from Yamaha’s philosophy of True Sound, the URX mic preamps capture the raw power, delicate nuances, and pure beauty of your performance with exceptional accuracy. 78 dB gain range with ultra-low distortion, and a 125 dB dynamic range at Main output—all designed to capture every detail of your performance exactly as it is.

Pristine, True Sound Reproduction

The pristine 192 kHz / 32-bit resolution, combined with high-end AD/DA converters, delivers pure input and output sound that faithfully reproduces the vividness and life of every moment in your recordings, productions, and edits—without compromise.

Yamaha URX44: Pristine, True Sound Reproduction

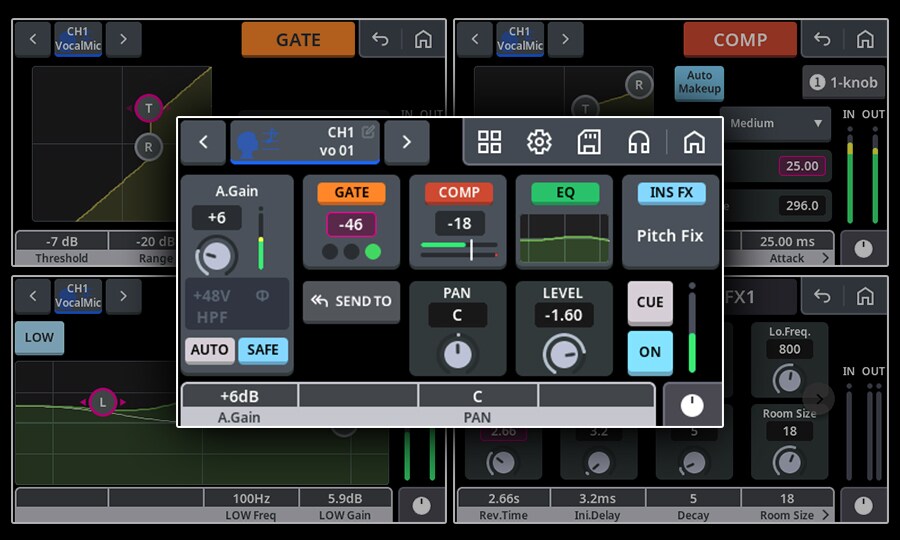

Creative Tools for Your Signature Sound

The URX also offers creative tools like Gate, Compressor, EQ, Reverb, Amp Simulator, and Voice Changer (Pitch Fix), letting you shape your sound exactly as you've envisioned. And with clear, comfortable monitoring on stage, in the studio, or during a stream, every moment you capture will resonate with your distinctive sound.

Yamaha URX44: Creative Tools for Your Signature Sound

Expand. Connect. Create.

The URX series gives you the freedom to expand your creativity without limits. Whether you’re recording, performing live, podcasting, or producing, your URX adapts to your unique style and workflow, taking your sound and performances into exciting new territory.

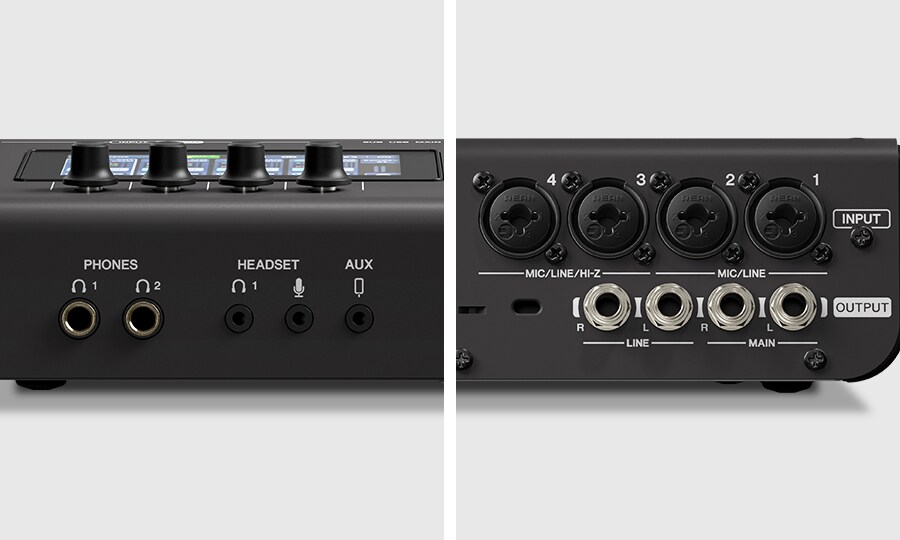

Connect and Collaborate

With four combo inputs offering 78 dB of gain range and one stereo mini AUX input, you can connect any microphone or instrument, while two headphone ports allow you to create with collaborators and monitor with precision in the studio or on stage.

Yamaha URX44: Connect and Collaborate

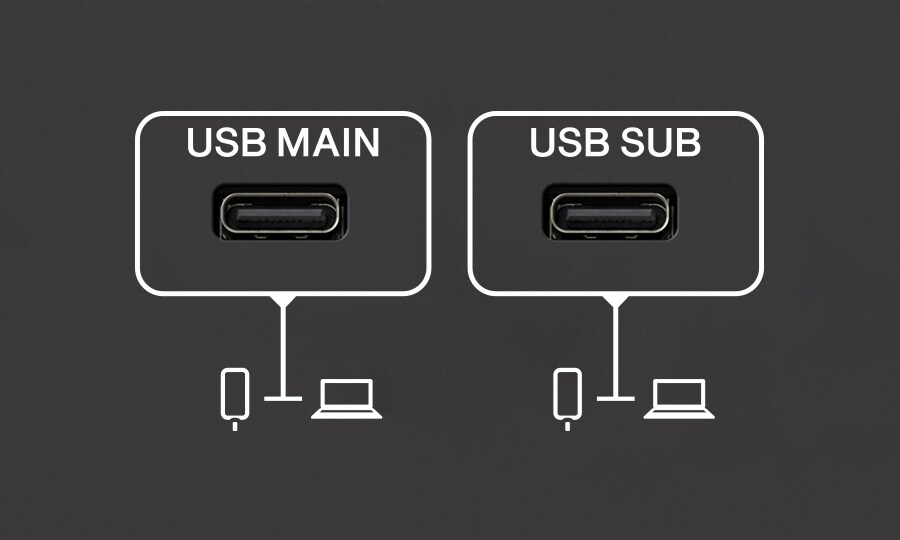

Flexible Integration

By making full use of the flexible routing functions and dual MAIN/SUB USB ports, you can integrate a wide range of audio sources and devices into a setup that adapts to your creative process and production workflow.

- USB MAIN: 18-track recording / 18-track playback

- USB SUB: 2-track recording / 2-track playback

Yamaha URX44: Flexible Integration

microSD Multi-Track Recording

With the URX44V/URX44, you can record up to 16 tracks of audio and play back 2 tracks directly from a microSD card.

So whether you're capturing a mobile standalone recording session, creating a reliable backup, re-editing your recorded multitracks in post-production to refine the balance and produce a polished master, or playing background music at a venue, you can confidently deliver pro-quality sound anywhere.

Yamaha URX44: microSD Multi-Track Recording

Fast. Intuitive. In Flow.

The URX is made for creators who want powerful control without the complexity. Its intuitive panel GUI combines pro-quality effects, flexible routing, and a full set of assistive features, while the carefully configured physical controls and responsive touch operation enable smooth and precise, tactile control.

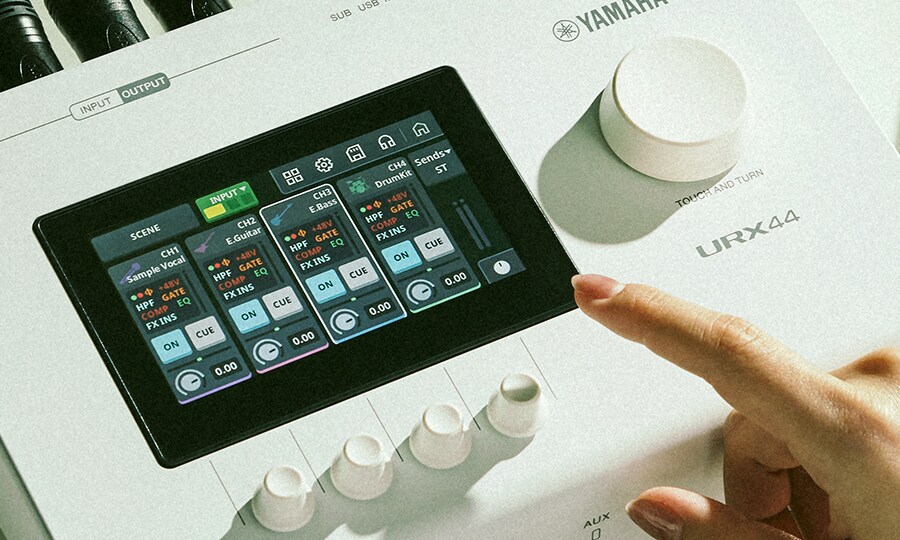

Intuitive Control at Your Fingertips

With a feature-packed GUI, an intuitive touch LCD, four customizable knobs, and the TOUCH AND TURN knob, you can experience fast, precise, and effortless control—right at your fingertips.

Yamaha URX44: Intuitive Control at Your Fingertips

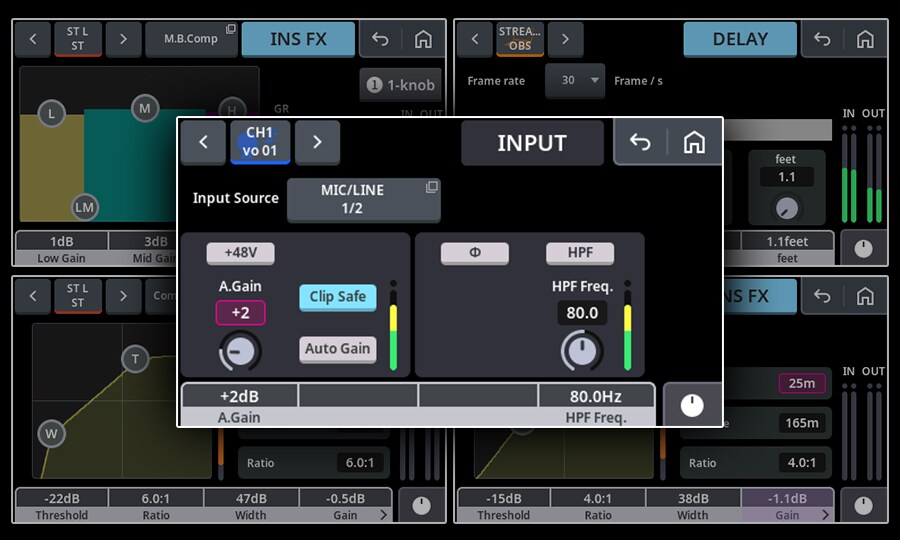

Assistive Tools for Pro-Level Sound

Smart Gain optimizes input volumes, Clip Safe prevents sudden distortion, and Total FX gives you tools like the Ducker—automatically prioritizing important sounds—and a Multi-Band Compressor to conveniently enhance your overall audio quality, and even a Delay for lip-sync adjustment.

With these features, your URX keeps your workflow smooth and your sound consistently professional in any situation.

Yamaha URX44: Assistive Tools for Pro-Level Sound

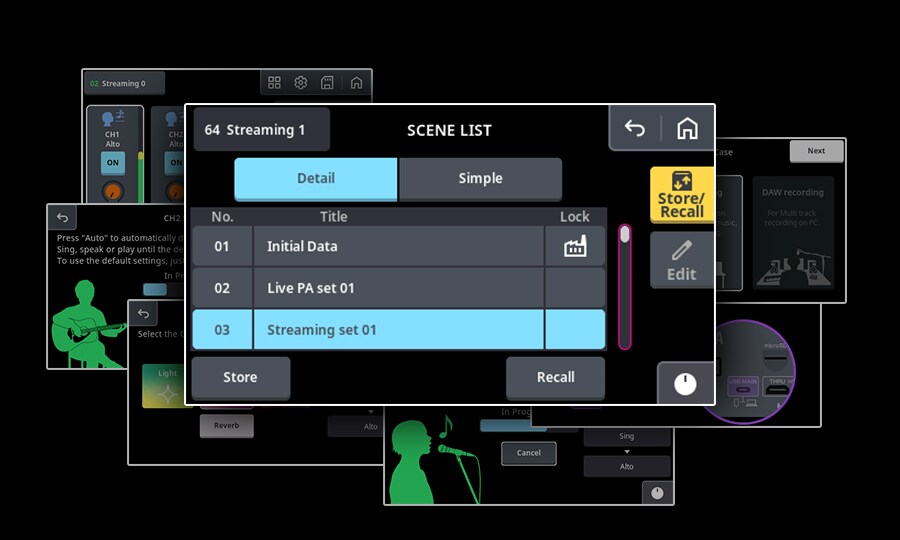

Quick Setup Changes with Scene Recall

With a Scene Recall function similar to those on a professional digital mixing console, you can switch between different setups or applications with the touch of a button. You can even pair it with Simple Mode for extra support, allowing you to stay focused on what matters most: your creativity.

Yamaha URX44: Quick Setup Changes with Scene Recall

Cohesive Creativity

With an ever-expanding ecosystem of production software and a wide range of compatible controllers, your URX becomes an even more powerful partner in your creative journey. Far more than just an interface, when your URX combines with these tools it opens up a new world of freedom and possibilities for your creativity.

Comprehensive Creative Software and Hardware

A complete suite of Steinberg music production software, together with the free software mixer MixKey, provides support for everyone from beginners just starting out to experienced engineers and creators looking to branch out into new production styles or content creation.

With Yamaha’s lineup of speakers, microphones, headphones, and more, you can build a system that grows and evolves right alongside your developing skills and creative workflow.

Yamaha URX44: Comprehensive Creative Software and Hardware

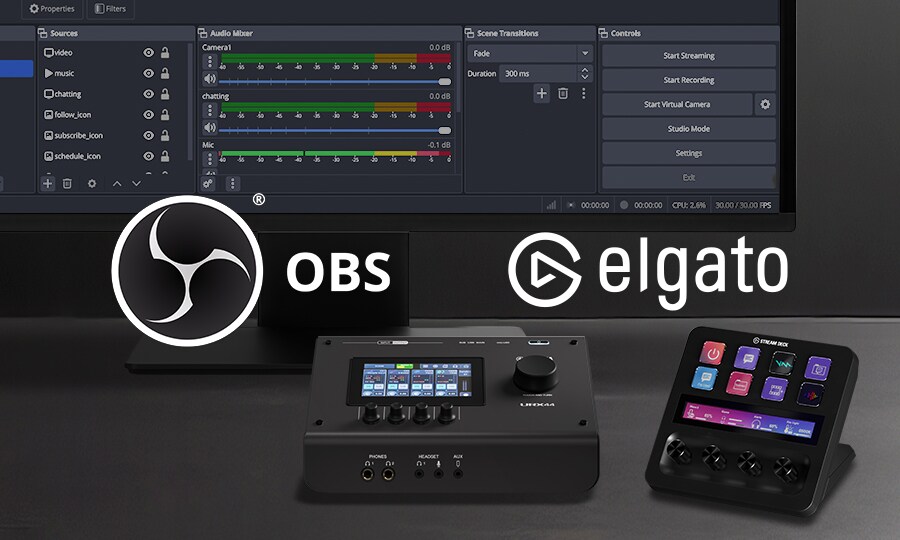

Seamless Controller Integration for a Custom Workflow

Seamless integration with Elgato’s Stream Deck and OBS Studio enhances the smoothness and reliability of all controls. In addition, future support for URX remote operation through Stream Deck—along with ongoing development and further feature expansion—is planned to continuously extend these capabilities. This will enable you to build a workflow that is truly your own and focus entirely on music production, streaming, video content creation, and performance.

Yamaha URX44: Seamless Controller Integration for a Custom Workflow

Systems

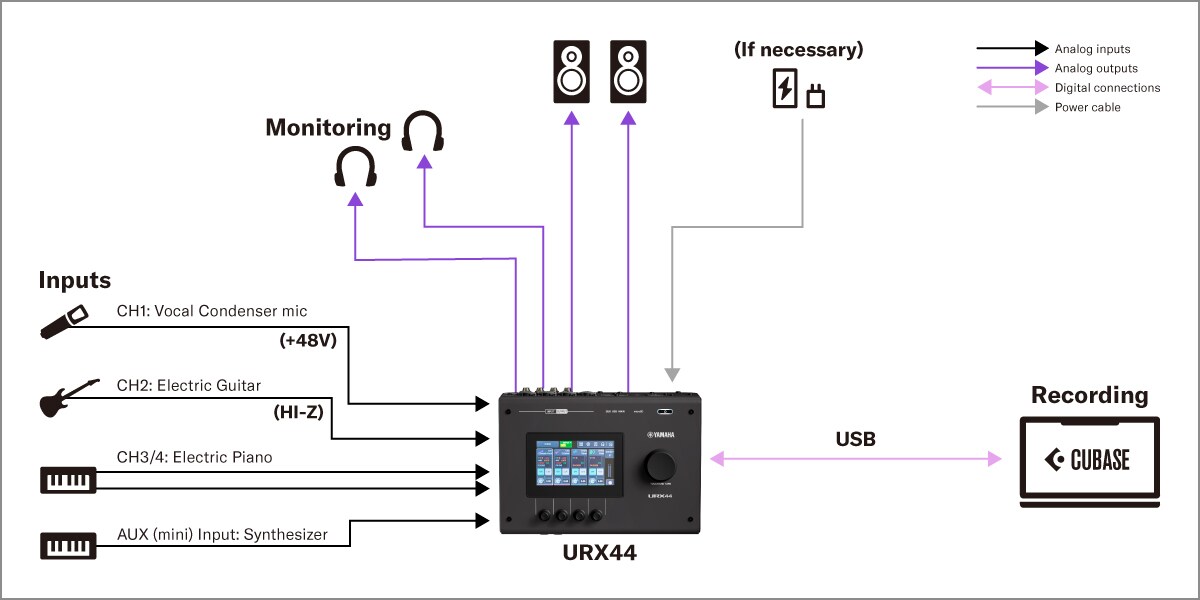

1. Music Production Setup with DAW

This setup supports music production by integrating vocals, guitars, keyboards, and synthesizers into the URX44.

A condenser microphone, electric guitar (Hi-Z), electric piano, and an auxiliary synthesizer are routed into the interface, with monitoring provided through headphones or monitor speakers.

The mixed signals are sent via USB to a DAW such as Cubase for high-quality multitrack recording.

Click the image to enlarge it.

  • Yamaha URX44: 1. Music Production Setup with DAW
Yamaha URX44: 1. Music Production Setup with DAW

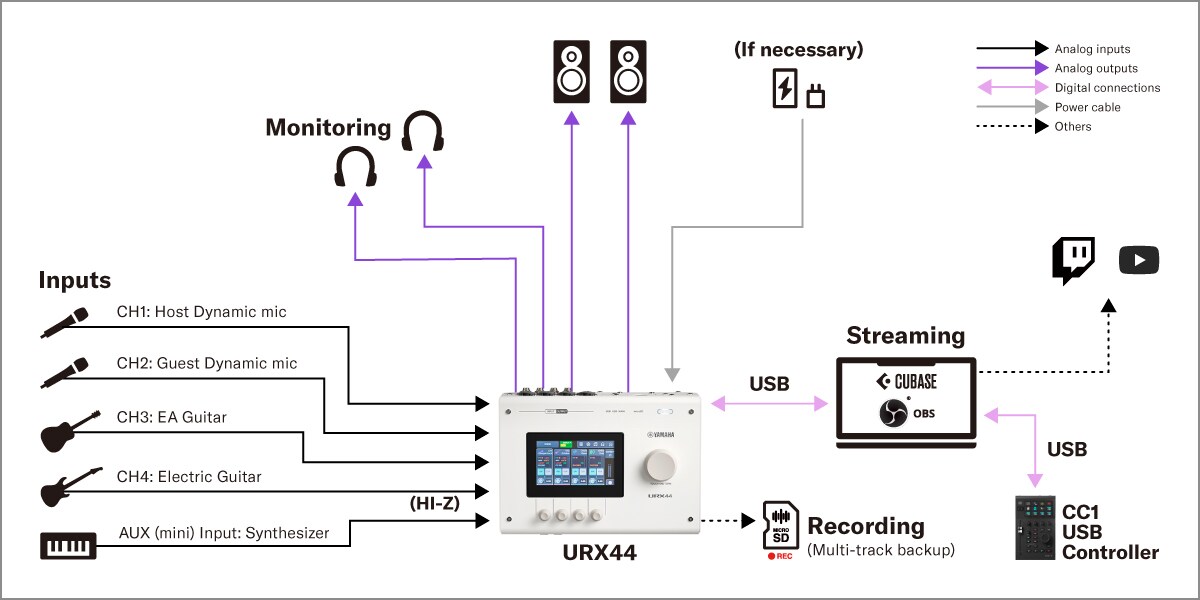

2. DAW Streaming Setup

This setup expands the URX44 workflow to support both music production and livestreaming.

Dynamic microphones for host and guest vocals, acoustic and electric guitars, and a synthesizer are connected to the interface, with monitoring handled through headphones and monitor speakers.

Audio is routed via USB to a DAW or streaming software such as Cubase or OBS, while a multitrack backup can be recorded to a microSD card in the URX44.

The CC1 USB Controller provides hands-on control of streaming or DAW operations for smooth production and broadcast.

Click the image to enlarge it.

  • Yamaha URX44: 2. DAW Streaming Setup
Yamaha URX44: 2. DAW Streaming Setup
